FPV Drone Parts Explained (2026)

The Complete Illustrated Guide to Every Component Inside an FPV Drone

⭐⭐⭐⭐⭐ MidronePro Ultimate Technical Guide 2026

An FPV drone may look like a simple flying machine, but beneath its carbon fiber frame lies a carefully engineered system of interconnected components working together hundreds of times every second.

From the instant you move the sticks on your radio controller, signals travel through the receiver to the flight controller, which processes thousands of calculations before commanding the ESCs to adjust motor speed with incredible precision. Simultaneously, the FPV camera captures live video that is transmitted to your goggles while the battery powers every system onboard.

Understanding how these components interact is one of the fastest ways to become a better FPV pilot.

Whether you're buying your first drone, replacing damaged parts, troubleshooting a problem, or preparing to build your own quadcopter, learning the purpose of each component makes future upgrades and repairs far less intimidating.

This guide is designed to become the definitive reference for FPV hardware.

In this comprehensive MidronePro technical guide, you'll learn exactly what every FPV drone component does, how the systems work together, which parts are most important for different flying styles, and what beginners should know before purchasing replacement or upgrade components.

---

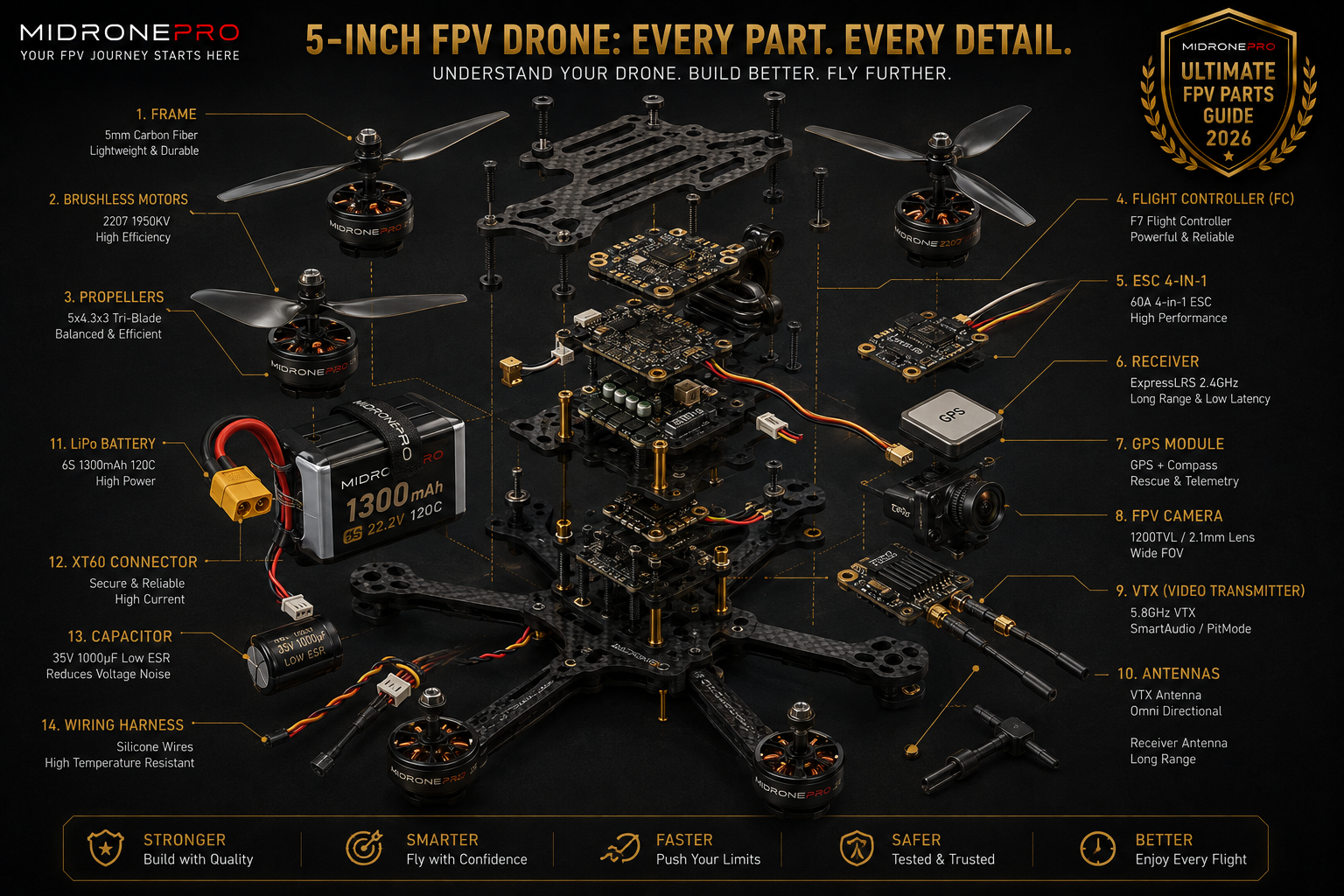

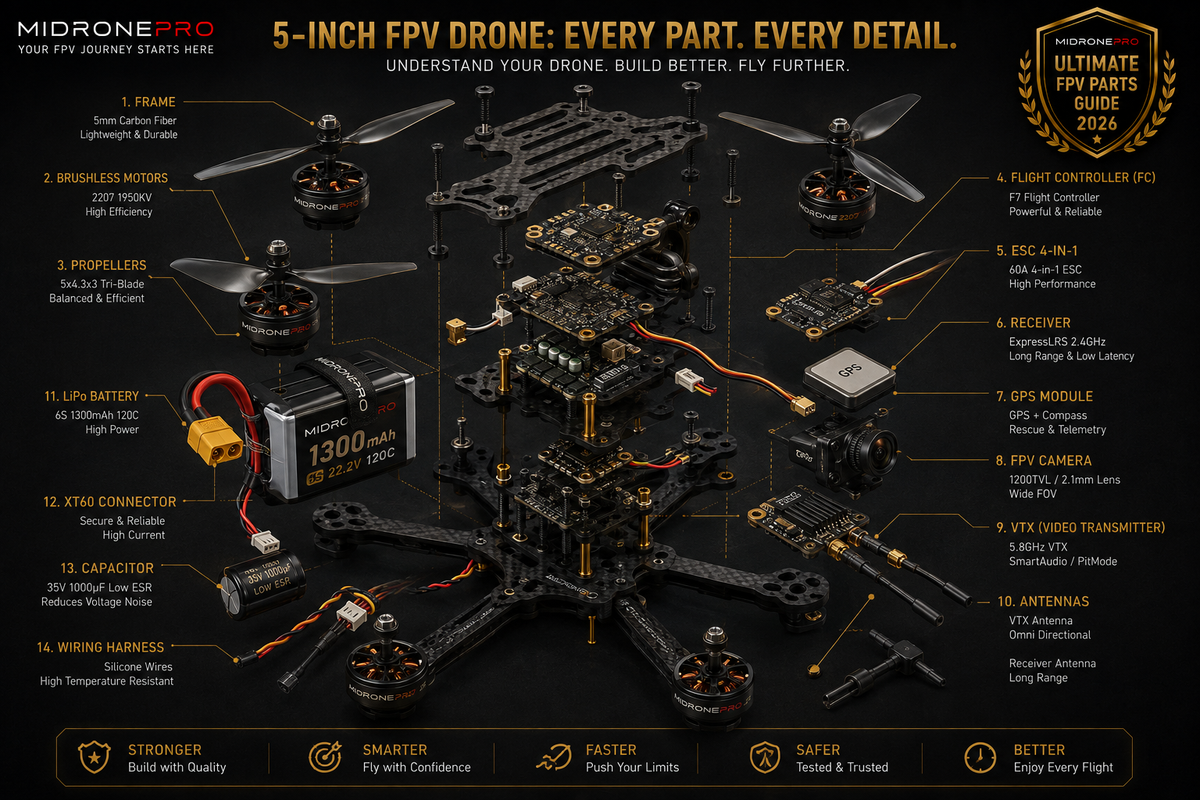

Quick Answer

What are the main parts of an FPV drone?

A modern FPV drone typically includes these essential components:

• Carbon fiber frame

• Brushless motors

• Propellers

• Flight controller (FC)

• Electronic Speed Controller (ESC)

• FPV camera

• Video transmitter (VTX)

• Antennas

• Radio receiver

• Battery

• Battery connector (XT30 or XT60)

• GPS module (optional)

• Buzzer (optional)

• LEDs (optional)

Each component plays a specific role in powering, controlling, stabilizing, or transmitting video from the aircraft.

---

How Does an FPV Drone Work?

Every FPV drone combines power, flight control, radio communication, and live video transmission into a highly integrated flying system.

An FPV drone is essentially a collection of specialized systems working together in real time.

The process begins with the pilot.

Every movement of the transmitter sticks sends wireless commands to the receiver inside the drone.

The receiver forwards those commands to the flight controller, which constantly analyzes data from onboard sensors to determine how the aircraft should respond.

The flight controller then sends instructions to the Electronic Speed Controllers (ESCs), which regulate power delivered to each brushless motor.

At the same time:

• The battery powers every onboard system.

• The FPV camera captures live video.

• The VTX transmits that video to your FPV goggles.

• Optional GPS modules record position and altitude.

• Telemetry sends flight information back to the pilot.

All of this happens continuously—often hundreds or even thousands of times per second.

---

Understanding the Main Systems

Instead of viewing an FPV drone as dozens of individual parts, it's helpful to think of it as five major systems working together.

System	Primary Purpose
Airframe	Structural support
Power System	Provides electrical energy
Flight Electronics	Stabilizes and controls flight
Radio System	Pilot communication
FPV Video System	Live video transmission

Understanding these systems makes troubleshooting and upgrades much easier.

---

The Carbon Fiber Frame

The frame forms the structural foundation of the drone.

Every other component attaches to it.

Modern FPV frames are usually made from carbon fiber because it provides:

• High strength

• Low weight

• Excellent rigidity

• Crash resistance

Frame design influences:

• Flight characteristics

• Durability

• Weight

• Camera protection

• Propeller clearance

• Ease of repair

---

Main Frame Components

Most frames include:

• Top plate

• Bottom plate

• Arms

• Camera cage

• Standoffs

• Battery pad

Some also include TPU-printed accessories such as antenna mounts, GPS holders, and GoPro mounts.

---

Brushless Motors

Brushless motors convert electrical energy into the thrust needed for precise FPV flight while balancing power, efficiency, and responsiveness.

Motors provide the thrust that keeps an FPV drone airborne.

Most modern FPV drones use brushless motors, which offer:

• High efficiency

• Excellent reliability

• Smooth operation

• Long service life

Each motor spins one propeller.

Changing the speed of individual motors allows the drone to:

• Climb

• Descend

• Roll

• Pitch

• Yaw

• Hover

Modern flight controllers constantly adjust motor speed to maintain stable flight.

---

Understanding Motor KV

Motor KV indicates how many revolutions per minute (RPM) a motor attempts to spin for every volt applied without a load.

Higher KV generally means:

• Faster motor speed

• Higher responsiveness

• Greater power demands

Lower KV generally means:

• Better efficiency

• Lower current draw

• Improved compatibility with higher-voltage battery systems

Choosing the correct KV depends on the frame size, propellers, battery voltage, and intended flying style.

---

Propellers

Propellers transform motor rotation into lift.

Although inexpensive, they have a major influence on flight performance.

Changing propellers affects:

• Maximum speed

• Thrust

• Efficiency

• Noise

• Battery life

• Responsiveness

Propellers are available in different:

• Diameters

• Blade counts

• Pitch angles

• Materials

Freestyle pilots often prioritize smooth handling, while racers may prefer aggressive propellers with rapid acceleration.

---

Common Propeller Sizes

Drone Type	Typical Propeller Size
Tiny Whoop	31–40 mm
2-inch FPV	2 inches
3-inch FPV	3 inches
5-inch FPV	5 inches
7-inch Long Range	7 inches

Matching the propeller to the motor and battery is essential for achieving efficient performance.

---

The Battery

The battery supplies power to every electronic component onboard.

Without it, nothing functions.

Modern FPV drones commonly use:

• LiPo batteries

• Li-Ion batteries (long-range)

Battery selection affects:

• Flight time

• Weight

• Agility

• Acceleration

• Voltage stability

Choosing the correct battery is one of the most important decisions when building or upgrading an FPV drone.

---

Battery Connections

Most FPV batteries connect using:

• XT30 connectors (smaller drones)

• XT60 connectors (5-inch and larger drones)

Reliable connectors help reduce resistance while safely delivering the high current demanded during aggressive flight.

---

Power Distribution

Efficient power distribution ensures that every component receives stable electrical power while helping minimize electrical interference.

Once electricity leaves the battery, it must be delivered safely and efficiently throughout the aircraft.

Depending on the drone design, power may flow through:

• ESC power pads

• Power Distribution Board (PDB)

• Flight controller stack

• Capacitor

• Wiring harness

These components ensure every onboard system receives the correct electrical supply.

Clean power improves reliability and helps reduce electrical noise that could interfere with sensitive electronics such as the FPV camera and video transmitter.

---

In the next section, we'll examine the electronic systems that make FPV flight possible, including:

• Flight Controller (FC)

• Electronic Speed Controller (ESC)

• Radio Receiver

• GPS Module

• FPV Camera

• Video Transmitter (VTX)

• FPV Antennas

• Buzzers

• LEDs

• Wiring and connectors

Each component will be explained with detailed diagrams, premium image recommendations, SEO-friendly filenames, optimized alt text, captions, placement guidance, and luxury AI image prompts to maintain the high-end MidronePro editorial standard.

FPV Drone Parts Explained (2026)

Flight Electronics, FPV System & Communication Components

The airframe and power system provide the foundation of an FPV drone—but the electronics are what make it intelligent.

Modern FPV drones rely on multiple onboard systems working together in real time. Every second, the flight controller processes sensor data, the ESCs regulate motor speed, the receiver interprets pilot commands, and the FPV system transmits live video with extremely low latency.

Understanding these components helps pilots troubleshoot problems, upgrade hardware, and build more reliable aircraft.

---

The Flight Controller (FC)

The Flight Controller (FC) is often called the brain of an FPV drone.

It receives information from onboard sensors and your radio receiver, performs thousands of calculations every second, and sends commands to the ESCs.

Without the flight controller, stable flight would be impossible.

---

What Does a Flight Controller Do?

A modern FC continuously manages:

• Motor output

• Gyroscope data

• Accelerometer data

• Flight modes

• Receiver inputs

• Battery monitoring

• GPS data

• Blackbox logging

• OSD (On-Screen Display)

• Telemetry

Most FPV drones today use firmware such as Betaflight, while some long-range and autonomous builds use INAV or ArduPilot.

---

Main Flight Controller Components

Typical features include:

• Processor (MCU)

• Gyroscope

• Accelerometer

• UART ports

• USB-C port

• OSD chip

• Blackbox memory

• Voltage regulators

• Solder pads

The processor reads sensor data hundreds to thousands of times per second to maintain smooth and responsive flight.

---

Electronic Speed Controller (ESC)

The Electronic Speed Controller (ESC) regulates electrical power sent to each brushless motor.

Each motor requires extremely precise speed adjustments.

The ESC performs these adjustments thousands of times every second.

---

ESC Responsibilities

The ESC controls:

• Motor RPM

• Motor timing

• Power delivery

• Current flow

• Braking

• Startup sequence

Without ESCs, motors would simply spin at one constant speed.

---

4-in-1 ESC vs Individual ESCs

Modern FPV drones commonly use:

4-in-1 ESC

Advantages:

✔ Compact

✔ Lightweight

✔ Cleaner wiring

✔ Easier builds

---

Individual ESCs

Advantages:

✔ Easy replacement

✔ Popular for large aircraft

✔ Better heat separation

---

Radio Receiver

The radio receiver maintains the communication link between the pilot and the aircraft, ensuring accurate and reliable control.

The receiver allows your drone to communicate with your radio transmitter.

Every stick movement travels wirelessly to the receiver before being passed to the flight controller.

Reliable communication is essential for safe flying.

---

Popular Receiver Protocols

Modern FPV systems commonly use:

• ExpressLRS (ELRS)

• TBS Crossfire

• FrSky ACCESS

• FrSky ACCST

• FlySky

Today, ExpressLRS (ELRS) has become the most popular protocol because of its low latency, long range, and affordable hardware.

---

Receiver Features

Most receivers include:

• Antenna connectors

• Telemetry support

• Failsafe protection

• Status LEDs

• Binding button

---

GPS Module

A GPS module provides location data that supports navigation, flight logging, and rescue features on compatible FPV drones.

Although not required for every FPV drone, GPS has become increasingly common.

It provides:

• Position

• Altitude

• Ground speed

• Direction

• Home point

GPS enables useful safety features including:

• GPS Rescue

• Flight logging

• Distance tracking

• Return navigation assistance

Long-range FPV pilots often consider GPS essential.

---

FPV Camera

The FPV camera is your eyes in the sky.

Unlike action cameras that prioritize recording quality, FPV cameras are optimized for:

• Extremely low latency

• Wide field of view

• Fast exposure adjustment

• High refresh rates

These characteristics help pilots react quickly while flying.

---

Analog vs Digital Cameras

Analog cameras:

• Very low latency

• Lightweight

• Affordable

Digital cameras:

• Higher image quality

• Better detail

• Modern HD systems

• Excellent for cinematic flying

The right choice depends on your FPV video system.

---

Video Transmitter (VTX)

After the camera captures live video, the VTX broadcasts it to your FPV goggles.

The VTX determines:

• Transmission power

• Video range

• Signal stability

• Channel selection

Higher output power generally improves range but also generates more heat and consumes more battery power.

---

Modern VTX Features

Many current VTX units offer:

• Adjustable output power

• SmartAudio support

• Pit mode

• Temperature protection

• Digital compatibility (where applicable)

---

FPV Antennas

The antenna is often overlooked, yet it has a major influence on video quality and radio performance.

Poor antenna placement can significantly reduce range and increase signal loss.

---

Types of Antennas

Linear Antennas

• Lightweight

• Affordable

• Basic applications

---

Circular Polarized Antennas

• Better signal stability

• Improved interference rejection

• Common in modern FPV systems

Examples include:

• RHCP

• LHCP

Matching antenna polarization between the drone and goggles is essential for optimal performance.

---

Buzzers

A buzzer helps locate a drone after a crash.

Many modern buzzers continue sounding even if the main battery disconnects.

Benefits include:

• Faster recovery

• Reduced equipment loss

• Easier searching in tall grass

• Improved safety

---

LEDs

LED lighting serves both practical and aesthetic purposes.

Functions include:

• Orientation

• Visibility

• Status indication

• Custom appearance

Some flight controllers allow programmable LED patterns for battery warnings or flight modes.

---

Wiring & Connectors

Although small, the wiring harness is essential to every FPV build.

Common wiring includes:

• Motor wires

• Battery leads

• Receiver connections

• Camera wiring

• VTX cables

• GPS wiring

Clean solder joints and proper cable management improve reliability and simplify future maintenance.

---

How These Electronics Work Together

Every flight relies on constant communication between these systems:

1. The receiver receives commands from your radio controller.

2. The flight controller processes those commands alongside sensor data.

3. The ESC adjusts motor speed accordingly.

4. The brushless motors generate thrust.

5. The FPV camera captures live video.

6. The VTX transmits the feed to your goggles.

7. Optional GPS and telemetry systems provide navigation and flight information.

This synchronized operation allows modern FPV drones to remain incredibly agile, responsive, and capable.

---

In the next chapter, we'll explore the mechanical engineering behind FPV performance, including:

• Motor KV explained

• Bearings and motor construction

• Carbon fiber quality

• Frame geometry

• Propeller pitch

• Weight distribution

• Vibration and soft mounting

• Cooling and airflow

• Crash durability

• Maintenance and replacement parts

FPV Drone Parts Explained (2026)

Frame Geometry, Motors, Propellers, Vibration & Mechanical Performance

Every FPV drone is more than a collection of electronics.

Its flight characteristics are heavily influenced by mechanical engineering.

The frame geometry, motor size, propeller design, weight distribution, cooling, and vibration control all determine how the drone feels in the air.

Two drones with identical electronics can fly completely differently simply because of their mechanical design.

This chapter explains the engineering principles behind modern FPV performance.

---

Understanding Motor KV

Motor KV influences rotational speed and efficiency, making it one of the most important specifications when matching motors to batteries and propellers.

Motor KV is one of the most misunderstood specifications in FPV.

It does not represent motor power.

Instead, KV describes the motor's theoretical rotational speed in revolutions per minute (RPM) for every volt applied without a load.

For example:

• 1700 KV

• 1950 KV

• 2450 KV

• 2750 KV

Higher KV motors spin faster but generally draw more current.

Lower KV motors spin more slowly but often operate more efficiently, especially with higher-voltage batteries.

---

Typical Motor KV Recommendations

Drone Type	Common Battery	Typical KV
Tiny Whoop	1S	18,000–25,000 KV
3-inch Freestyle	4S	3,000–4,000 KV
5-inch Freestyle	6S	1,700–2,000 KV
Racing Quad	6S	1,900–2,100 KV
Long-Range	6S Li-Ion	1,300–1,600 KV

Selecting the proper KV improves efficiency, responsiveness, and motor longevity.

---

Motor Construction

A brushless motor contains numerous precision-engineered components.

Major parts include:

• Bell

• Magnets

• Stator

• Copper windings

• Bearings

• Shaft

• Base

Each contributes to performance and durability.

Premium motors typically feature:

• Tighter manufacturing tolerances

• Stronger magnets

• Higher-quality bearings

• Better cooling

• Improved balancing

These improvements create smoother, quieter, and more efficient flight.

---

Bearings

Motor bearings support the rotating bell.

Good bearings reduce:

• Friction

• Heat

• Vibration

• Noise

Damaged bearings often cause:

• Rough motor sound

• Increased vibration

• Reduced efficiency

• Poor flight performance

Replacing worn bearings can often restore a motor to smooth operation.

---

Carbon Fiber Quality

Most modern FPV frames are manufactured from carbon fiber because of its exceptional strength-to-weight ratio.

However, not all carbon fiber is equal.

Premium frames often provide:

• Better stiffness

• Cleaner machining

• Improved durability

• Lower vibration

• Reduced weight

Cheaper frames may flex more during aggressive flying, reducing flight precision.

---

Frame Geometry

Frame geometry influences agility, camera visibility, stability, and overall flying characteristics.

Frame layout dramatically affects flight behavior.

Common frame designs include:

---

True X

Advantages

✔ Balanced handling

✔ Symmetrical flight

✔ Excellent freestyle

---

Deadcat

Advantages

✔ Propellers remain outside camera view

✔ Better cinematic footage

✔ Reduced prop visibility

---

Stretch X

Advantages

✔ Stable high-speed handling

✔ Popular among racers

---

Wide X

Advantages

✔ Smooth freestyle

✔ Excellent control authority

---

Propeller Pitch

Propeller pitch and blade count influence thrust, efficiency, responsiveness, and flight duration.

Pitch determines how far a propeller would theoretically move through the air during one complete rotation.

Higher pitch generally provides:

• Faster acceleration

• Higher top speed

• Increased current draw

Lower pitch often provides:

• Better efficiency

• Smoother handling

• Longer flight time

Freestyle pilots often seek a balance between responsiveness and efficiency, while racers may choose more aggressive pitch for rapid acceleration.

---

Blade Count

FPV propellers are commonly available in:

Two-Blade

• Efficient

• Long-range flying

---

Three-Blade

• Most common

• Balanced performance

• Freestyle

• Racing

---

Four-Blade

• Increased grip

• Higher current draw

• Specialized applications

Three-blade propellers remain the preferred choice for many 5-inch freestyle drones because they provide an excellent compromise between control and efficiency.

---

Weight Distribution

Proper weight distribution improves stability.

Most builders try to keep heavy components near the center of the frame.

Examples include:

• Battery

• Flight controller

• ESC stack

• Action camera

Balanced weight reduces unwanted rotational inertia during flips and rolls.

An evenly balanced aircraft generally feels more predictable and responsive.

---

Center of Gravity

The center of gravity (CG) should remain close to the physical center of the frame.

Poor balance may cause:

• Uneven rolls

• Pitch instability

• Inconsistent handling

• Reduced efficiency

Battery placement often has the greatest influence on overall balance.

---

Vibration

One of the biggest enemies of smooth FPV flight is excessive vibration.

Sources include:

• Bent propellers

• Damaged motors

• Loose screws

• Poor bearings

• Frame resonance

Too much vibration can affect:

• Gyroscope accuracy

• Video quality

• Flight stability

• Motor efficiency

Routine inspections help identify vibration before it becomes a larger problem.

---

Soft Mounting

Some builders use soft mounting to isolate sensitive electronics from frame vibrations.

Components commonly soft-mounted include:

• Flight controller

• Camera

• GPS module

Rubber grommets or vibration-damping hardware help reduce unwanted oscillations reaching the sensors.

---

Cooling & Airflow

Brushless motors, ESCs, and VTX units generate heat during flight.

Proper airflow helps maintain reliable performance.

Modern frame designs often improve cooling by allowing air to flow across:

• Motors

• ESC

• Flight controller

• Video transmitter

Keeping components cool improves both reliability and lifespan.

---

Crash Durability

FPV drones are designed to survive crashes.

However, some components are naturally more vulnerable.

Most commonly damaged parts include:

• Propellers

• Motor bells

• Camera lenses

• Antennas

• Battery straps

• TPU mounts

Fortunately, these components are generally inexpensive and easy to replace.

High-quality carbon fiber frames and premium electronics often withstand impacts better than entry-level hardware.

---

Routine Mechanical Maintenance

Regular inspections help prevent unexpected failures.

Before Every Flight

• Check propellers for cracks

• Verify motor screws

• Inspect frame arms

• Confirm battery strap condition

• Spin motors by hand to detect rough bearings

• Ensure antennas are secure

---

Monthly Maintenance

• Tighten frame hardware

• Clean motors

• Remove debris

• Inspect bearings

• Replace worn propellers

• Check motor wires

---

Long-Term Care

Store your drone:

• In a dry environment

• Away from direct sunlight

• Protected from impacts

• With batteries removed for extended storage

Consistent maintenance improves safety, reliability, and long-term performance.

---

The final chapter includes:

• How all FPV components work together

• Choosing the right parts for your build

• Common beginner mistakes

• Frequently asked questions

• Future upgrade paths

• MidronePro Editor's Final Verdict

By the end of Part 4, you'll understand how every component contributes to the performance of an FPV drone and how to make informed decisions when upgrading, repairing, or building your own aircraft.

FPV Drone Parts Explained (2026)

Buying Advice, Common Mistakes, FAQ & Final Recommendations

You've now explored every major component inside a modern FPV drone—from the carbon fiber frame and brushless motors to the flight controller, ESC, FPV camera, radio receiver, GPS module, antennas, and battery system.

Understanding how these components work together makes it much easier to:

• Build your first FPV drone

• Upgrade individual components

• Troubleshoot flight problems

• Improve performance

• Make smarter purchasing decisions

Whether you're flying a pre-built Bind-and-Fly (BNF) quad or assembling a custom build from scratch, every part contributes to the overall flying experience.

---

How All FPV Components Work Together

Every FPV component works together as part of an integrated system, transforming pilot inputs into smooth, responsive flight.

Think of an FPV drone as a highly coordinated system rather than a collection of separate parts.

Each component performs a specialized task while constantly communicating with the others.

Flight Sequence

1. You move the sticks on your radio transmitter.

2. The receiver receives your commands.

3. The flight controller processes those commands together with gyroscope and accelerometer data.

4. The ESC adjusts power to each motor.

5. The brushless motors spin the propellers.

6. The battery powers every onboard system.

7. The FPV camera captures live video.

8. The VTX transmits the video feed.

9. Your FPV goggles display the live image.

This entire process repeats hundreds or even thousands of times every second, enabling the precise control that makes FPV flying possible.

---

Choosing the Right Components

Instead of purchasing the most expensive parts available, focus on building a balanced system.

Beginners

Prioritize:

• Reliable frame

• Proven flight controller

• Durable motors

• Affordable batteries

• ELRS receiver

Avoid unnecessary complexity.

---

Freestyle Pilots

Focus on:

• Durable carbon fiber frame

• Powerful motors

• Responsive ESC

• Stable FPV camera

• High-quality LiPo batteries

---

Long-Range Pilots

Prioritize:

• Efficient motors

• GPS module

• Li-Ion batteries

• Reliable antennas

• Efficient propellers

---

Racing Pilots

Choose:

• Lightweight frame

• High-KV motors

• Fast ESC

• Lightweight batteries

• Low-latency FPV system

---

Cinematic Pilots

Look for:

• Deadcat frame

• HD FPV system

• Smooth motors

• Stable power delivery

• Vibration isolation

Selecting components that complement each other produces a more capable drone than simply choosing the highest specifications in every category.

---

Common Beginner Mistakes

Choosing compatible components and following good assembly practices results in safer, more reliable FPV drones.

Understanding drone components helps avoid many costly errors.

---

Buying Incompatible Parts

Not every component works together.

Always verify compatibility between:

• Motors

• ESC

• Flight controller

• Battery voltage

• Propellers

• Frame size

---

Choosing Components by Price Alone

The cheapest part often becomes the most expensive if it fails early or requires replacement.

Invest in quality where reliability matters most.

---

Ignoring Weight

Every gram affects:

• Flight time

• Agility

• Efficiency

• Motor load

Building a lighter drone usually produces a better flying experience.

---

Poor Soldering

Weak solder joints are one of the most common causes of:

• Power loss

• Receiver failure

• Video interference

• Mid-flight shutdowns

Take time to learn proper soldering techniques before attempting your first build.

---

Skipping Routine Maintenance

Even premium components wear over time.

Inspect:

• Propellers

• Bearings

• Wiring

• Battery straps

• Connectors

• Frame hardware

before every flying session.

---

Future Upgrade Path

One of the greatest strengths of FPV drones is their modular design.

Instead of replacing the entire aircraft, you can upgrade individual components over time.

Popular upgrades include:

• Higher-quality motors

• Advanced flight controllers

• More efficient ESCs

• Better FPV cameras

• Digital video systems

• Improved antennas

• GPS modules

• Higher-performance batteries

• Lightweight carbon fiber frames

A gradual upgrade strategy allows you to improve performance while spreading costs over time.

---

Frequently Asked Questions

What are the most important parts of an FPV drone?

The core components are:

• Frame

• Motors

• Propellers

• Flight Controller

• ESC

• Receiver

• FPV Camera

• VTX

• Antennas

• Battery

These parts are required for nearly every modern FPV build.

---

What does the flight controller do?

The flight controller acts as the drone's computer.

It processes sensor information and pilot commands, then sends instructions to the ESCs to control motor speed.

---

What is the purpose of the ESC?

The ESC regulates electrical power delivered to each motor, enabling precise control over speed and thrust.

---

Why do FPV drones use brushless motors?

Brushless motors provide:

• Higher efficiency

• Greater reliability

• More power

• Longer service life

• Better throttle response

compared with brushed motors.

---

Why is carbon fiber used?

Carbon fiber offers an exceptional combination of:

• Low weight

• High stiffness

• Excellent crash resistance

making it the preferred material for modern FPV frames.

---

Can I upgrade individual components?

Yes.

One of the major advantages of FPV drones is that nearly every component can be repaired or upgraded independently.

---

Final Recommendations

Choose a Durable Frame if...

You expect frequent crashes while learning or practicing freestyle.

---

Choose Quality Motors if...

You want smoother throttle response, better efficiency, and longer service life.

---

Choose a Reliable Flight Controller if...

You want dependable flight performance, modern firmware support, and easier troubleshooting.

---

Choose ExpressLRS if...

You're building a new FPV drone and want a modern, low-latency radio system with excellent range and broad community support.

---

Choose Premium Batteries if...

You want consistent power delivery, longer battery lifespan, and improved overall flight performance.

---

Choose Quality Propellers if...

You want to fine-tune handling, responsiveness, and efficiency for your preferred flying style.

---

FPV Drone Parts Explained

This guide is optimized to answer search queries including:

• What are the parts of an FPV drone?

• What does a flight controller do?

• What is an ESC on an FPV drone?

• How does an FPV drone work?

• What are brushless motors?

• Why do FPV drones use carbon fiber?

• What is a VTX?

• What is an FPV receiver?

• What is the difference between an FPV camera and an action camera?

---

Learn more about FPV drones with MidronePro Academy:

Cornerstone Guides

• What Is an FPV Drone? The Complete Beginner's Guide (2026)

• Best FPV Drones for Beginners (2026)

• Best FPV Goggles (2026)

• Analog vs Digital FPV (2026)

• Best FPV Radio Controllers (2026)

• Best FPV Simulators (2026)

• Best FPV Batteries (2026)

Technical Buying Guides

• Best FPV Motors (2026)

• Best FPV Flight Controllers (2026)

• Best FPV ESCs (2026)

• Best FPV Frames (2026)

• Best FPV Cameras (2026)

• Best FPV Video Transmitters (VTX) (2026)

• Best FPV Antennas (2026)

Build & Maintenance Guides

• How to Build Your First FPV Drone

• FPV Drone Maintenance & Repair Guide

• Drone Battery Safety Guide

• XT30 vs XT60 Connectors Explained

• Motor KV Explained

• Betaflight Beginner Guide

---

MidronePro Editor's Final Verdict

Every FPV drone component contributes to flight performance. Understanding how these parts work together helps pilots build, repair, and upgrade aircraft with confidence.

Every successful FPV drone begins with a well-balanced combination of quality components. While individual upgrades can improve specific aspects of performance, the best aircraft are those in which the frame, motors, propellers, electronics, radio system, and power system are carefully matched to the pilot's goals.

For beginners, understanding the role of each component makes future repairs, upgrades, and troubleshooting far less intimidating. For experienced pilots, deeper knowledge of the hardware enables smarter purchasing decisions and more efficient custom builds.

Whether you're assembling your first quadcopter, replacing a damaged motor, upgrading to a digital FPV system, or planning a long-range platform, mastering the fundamentals of FPV drone components is one of the most valuable investments you can make. A strong understanding of the technology behind your aircraft will lead to better performance, easier maintenance, and greater confidence every time you fly.
